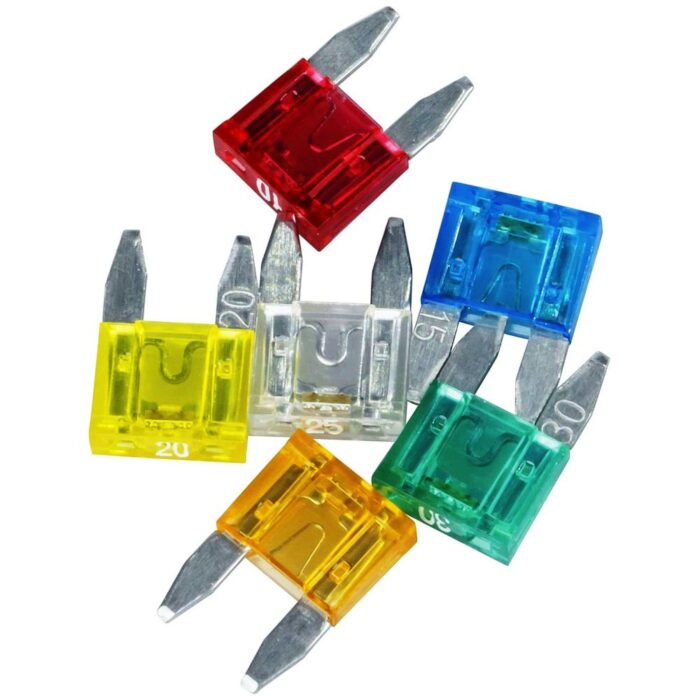

Mini Blade Auto Fuses Assorted 10 Pack

MINI automotive blade fuses and shunts weigh less than 0.6 g per unit. Their miniature design offers passenger and commercial vehicle makers significant weight and material savings while also delivering dependable fast-acting overcurrent protection in harsh environments. Littelfuse also makes a series of low-profile MINI fuses for use in locations with little space for bladed circuit protection devices.

Features

Fuses available with ampere ratings from 2 A to 30 A
Shunts have maximum continuous load ratings of 20 A
Operate at up to 125 ℃ with contact points on terminals reaching as high as 150 ℃
Fuses have tin- or silver-plated zinc alloy terminals
Shunts have silver-plated zinc alloy terminals
Fuses are UL Listed and UL Recognized
Benefits

Color coding indicates ampere rating
See-through housings make it easier to see when fuses blow
High-contrast ampere rating stamps aid identification
Checkpoints on top make it possible to measure resistance without removing the fuse
Blades for low-profile MINI fuses fit into the same receptacles as larger MINI fuses
